Garmin ECHOMAP UHD2 93sv Panoptix Livescope PLUS Ice Bundle GN US Inalnd

• GET IMPROVED CLARITY, SENSITIVITY AND TARGET SEPARATION


• SCAN SURROUNDINGS WITH REDUCED NOISE AND FEWER SONAR ARTIFACTS


• USE LIVESCOPE™ FORWARD MODE SO YOU KNOW WHERE TO DRILL


• USE LIVESCOPE™ DOWN MODE SO YOU CAN KEEP AN EYE ON YOUR JIG AND THE FISH


• FISH LONGER WITH A 16.5AH LIGHTWEIGHT LITHIUM-ION BATTERY

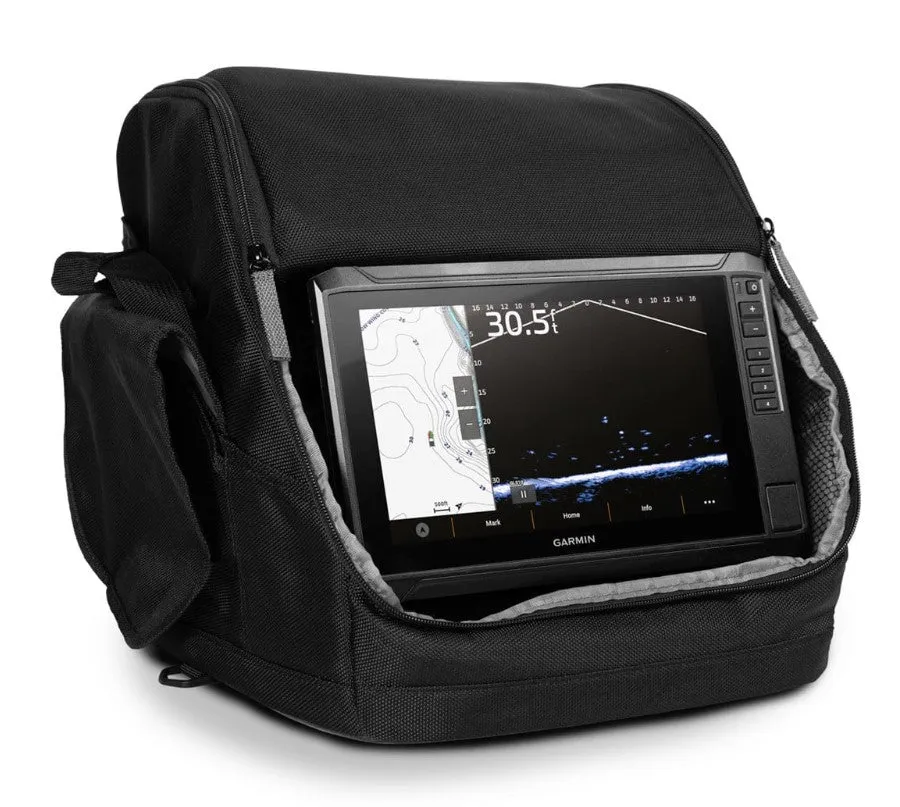

• INCLUDES A RUGGED, PORTABLE CARRYING CASE

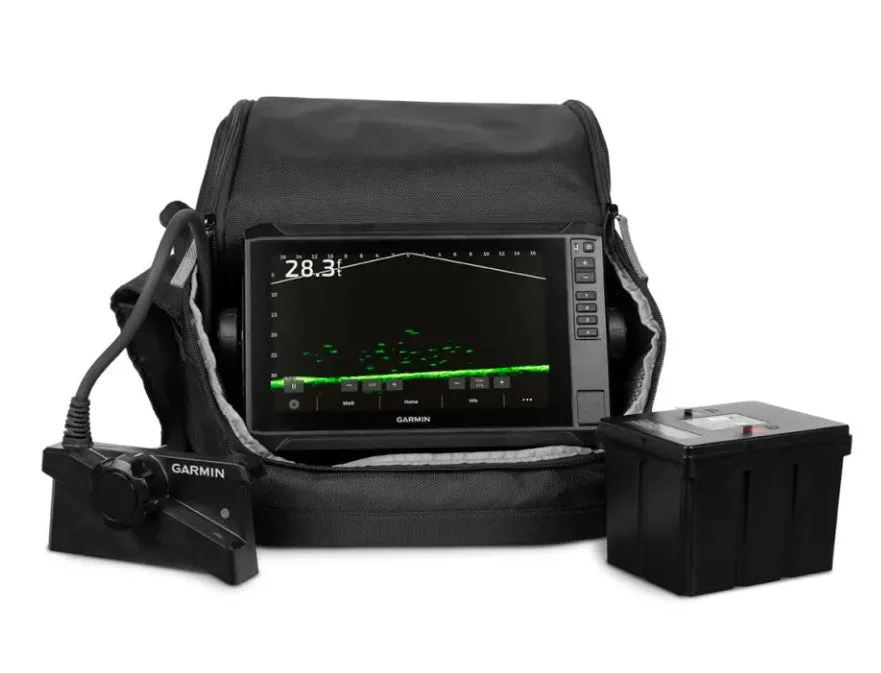

Get improved resolution, reduced noise, clearer images and better target separation with the LiveScope™ Plus Ice Fishing Bundle LI. It includes a 9-inch ECHOMAP™ UHD2 combo, the complete LiveScope Plus System with LVS34-IF transducer, swivel pole mount and a lightweight lithium battery.

Revolutionary real-time sonar pairs with a large 9-inch ECHOMAP UHD2 combo touchscreen display with keyed assist, allowing you to see up to 200’ in any direction.

The LiveScope System offers two live-scanning sonar modes — Down and Forward. It features a transducer cable that stays fle

Get preloaded Garmin Navionics maps for exceptional detail on more than 23,000 U.S. lakes.

You can create custom pages that combine sonar, flasher and map on your display.

Fish even longer with a lightweight 16.5Ah lithium battery that won’t weigh you down on the ice.

TOUCHSCREEN
Yes

INPUT
Touchscreen with Keyed Assist

DISPLAY SIZE
7.8" x 4.5", 9.0" (19.8 x 11.5, 22.9 cm)

DISPLAY RESOLUTION
1024 x 600 pixels

DISPLAY TYPE
DISPLAY TYPE

WEIGHT
22.5 lbs (10.2 kg)

WATERPROOF
IPX7

Maps & Memory

ACCEPTS DATA CARDS
1 microSD™ card; 32 GB maximum size

WAYPOINTS
5000

TRACK POINTS
50,000

TRACKS
50 saved tracks

NAVIGATION ROUTES
100

Ice Fishing Details

BATTERY TYPE, SIZE
Lithium-ion, 16.5Ah

BAG SIZE
Extra Large (XL)

INCLUDED TRANSDUCER
LiveScope™ Plus System with LVS34-IF

TRANSDUCER HOLDING FEATURE
Pole mount

Sensors

HAS BUILT-IN RECEIVER
Yes

RECEIVER
10 Hz

NMEA 2000 COMPATIBLE
Yes

GPS
Yes

GLONASS
Yes

GALILEO
Yes

BEIDOU
Yes

SUPPORTS WAAS
Yes

SUPPORTS MULTI-BAND, MULTI-CONSTELLATION GPS
Yes

Sonar Features & Specifications

DISPLAYS SONAR
Yes

POWER OUTPUT
500 W

TRADITIONAL SONAR (DUAL FREQUENCY/BEAM)
built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)

CLEARVU
built-in 260/455/800/1000/1200 kHz

SIDEVU
built-in 260/455/800/1000/1200 kHz

PANOPTIX™ SONAR
Yes

LIVESCOPE
Yes

Connections

NMEA 2000® PORTS
Yes

GARMIN MARINE NETWORK PORTS
1

12-PIN TRANSDUCER PORTS
1

BLUETOOTH® PAIRING
Yes

ANT (CONNECTIVITY)
Yes

GARMIN WI-FI NETWORK (LOCAL CONNECTION)
Yes

Input Voltage
9 to 18 Vdc

Dimensions
13.8" 12.2" 13.0" (35 31 33 cm)

What's in the Box:

• ECHOMAP™ UHD2 chartplotter


• LVS34-IF transducer


• GLS™ 10 sonar module


• Ice fishing pole mount


• Tilt mount


• Power cable

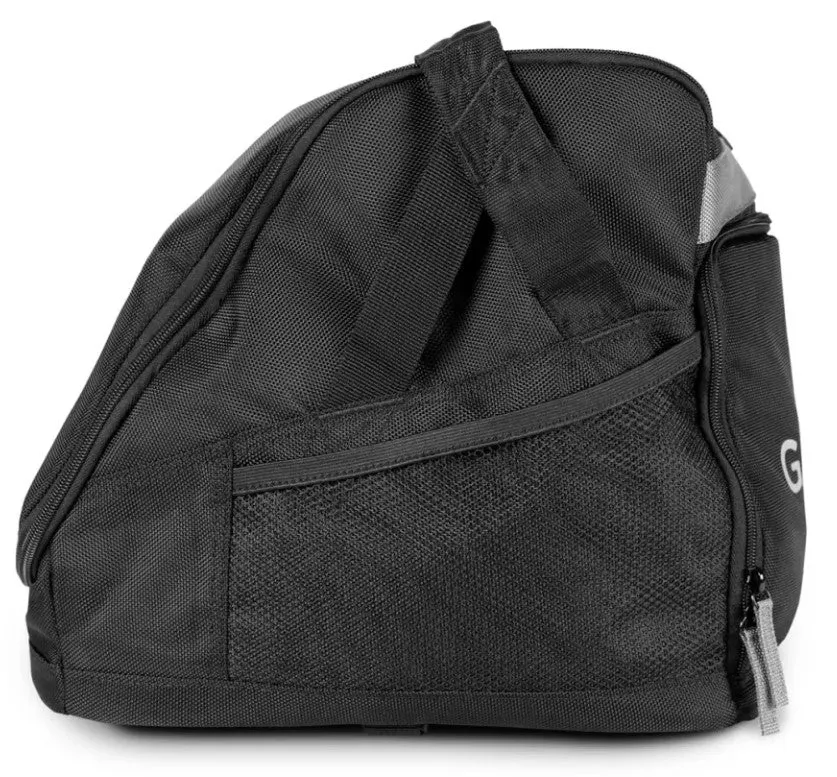

• Portable fishing bag with handle


• Lithium-ion battery


• Battery charger


• Documentation
